USED DMC DL 30 M LATHE

Sold

USED DMC DL 30 M LATHE

Location:Cologno Monzese, Italy

Description

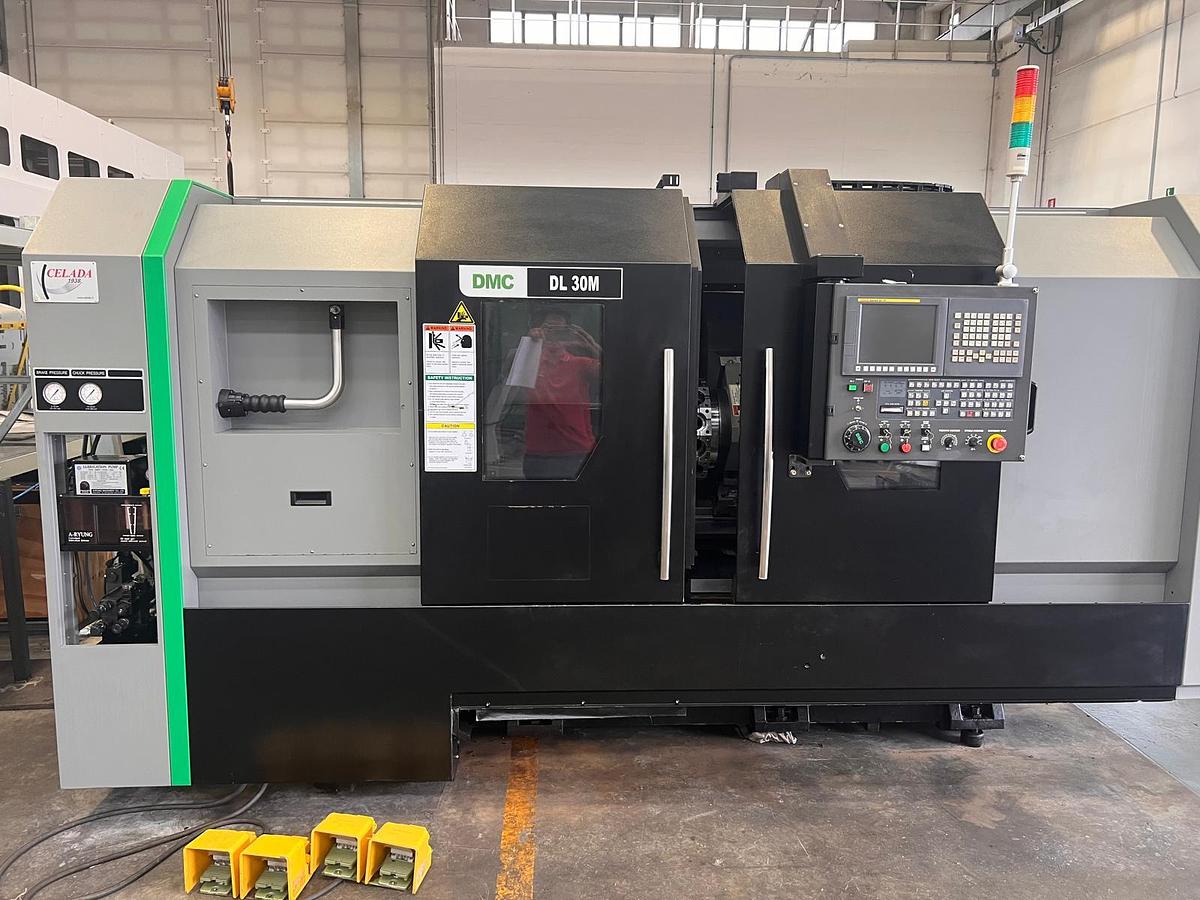

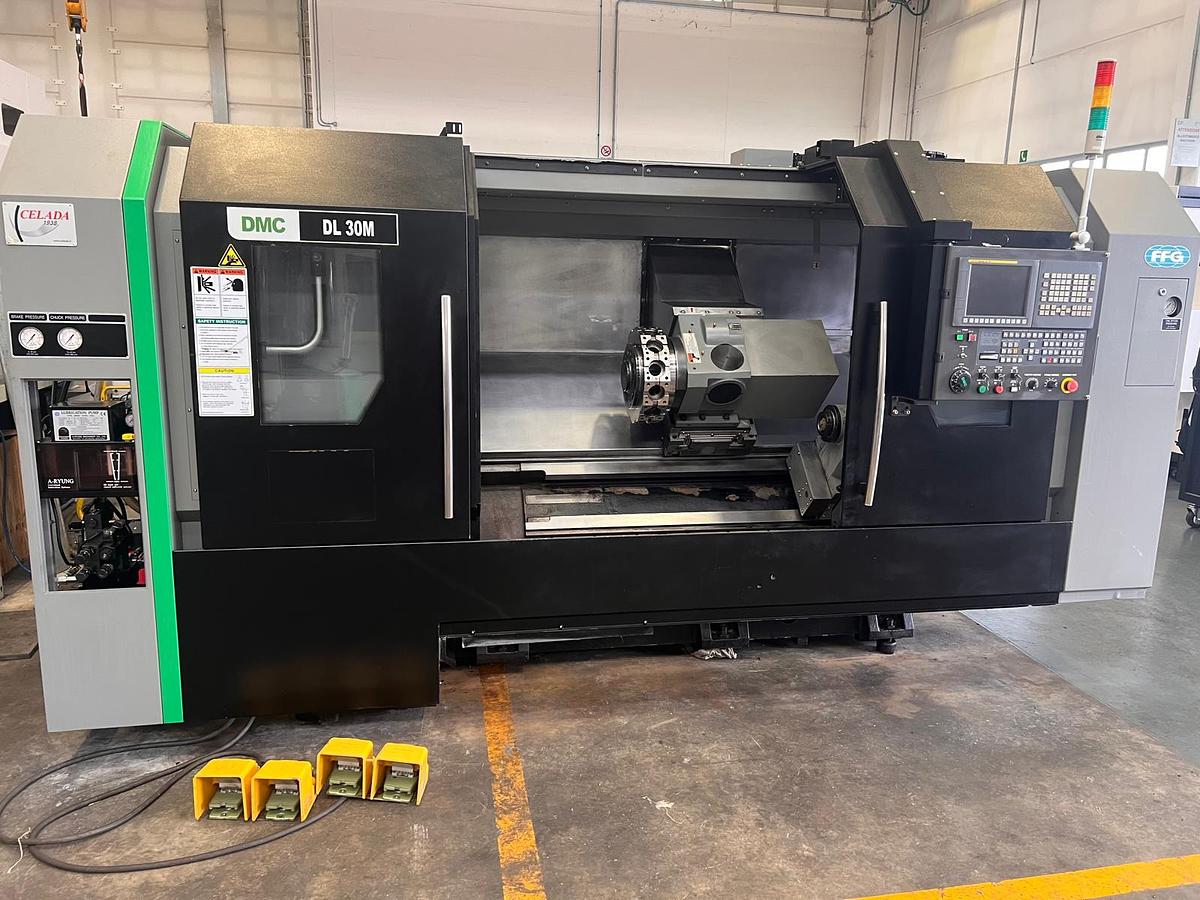

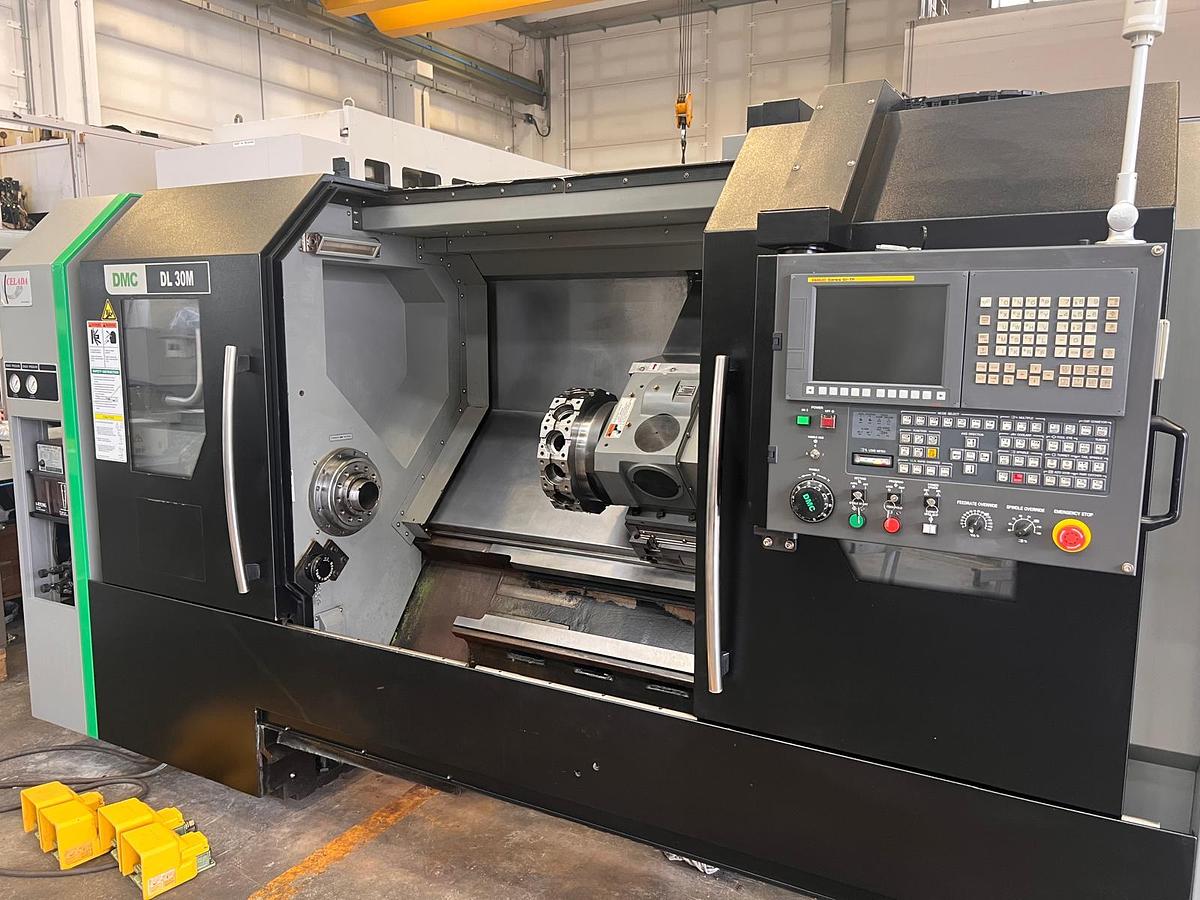

The DMC DL 30 M lathe is a used machine, ideal for precision machining in the turning sector. It is equipped with of a chip conveyor with side discharge, which guarantees excellent management of processing residues, and a Renishaw tool setting system for maximum operational precision. This lathe allows you to work pieces with a maximum rotating diameter of 610 mm and a maximum turning diameter of 400 mm. The maximum turning length is 1080 mm. The machine offers X-axis travels of 230 mm and Z-axis travels of 1130 mm, with rapid speeds of 20 m/min and 24 m/min respectively. The spindle can reach up to 3000 RPM, supported by a power of 15/18.5 kW and a bar passage of 89 mm. The tool turret has 12 motorized BTM 65 positions, allowing for great versatility in turning applications. This lathe is a solid choice for those seeking reliability and precision in turning operations. processing of metal parts.

Specifications

ManufacturerDMC
ModelDL 30 M
Year2019
ConditionUsed
Stock Number74
Maximum rotating diameter610 mm
Maximum diameter above guides480 mm
Maximum turning diameter400 mm
Maximum turning length1080 mm
X Axis Travel230 mm
Z Axis travel1.130 mm
X-Axis Rapids20 m / min
Rapid Z-Axis24 m / min
Spindle NoseA2 - ASA 8
Bar passage89 mm
Spindle speed3000 RPM
Spindle power15/18.5 Kw
Tool turret12 Position BTM 65 motorized
