QGRIND U1000 GRINDING

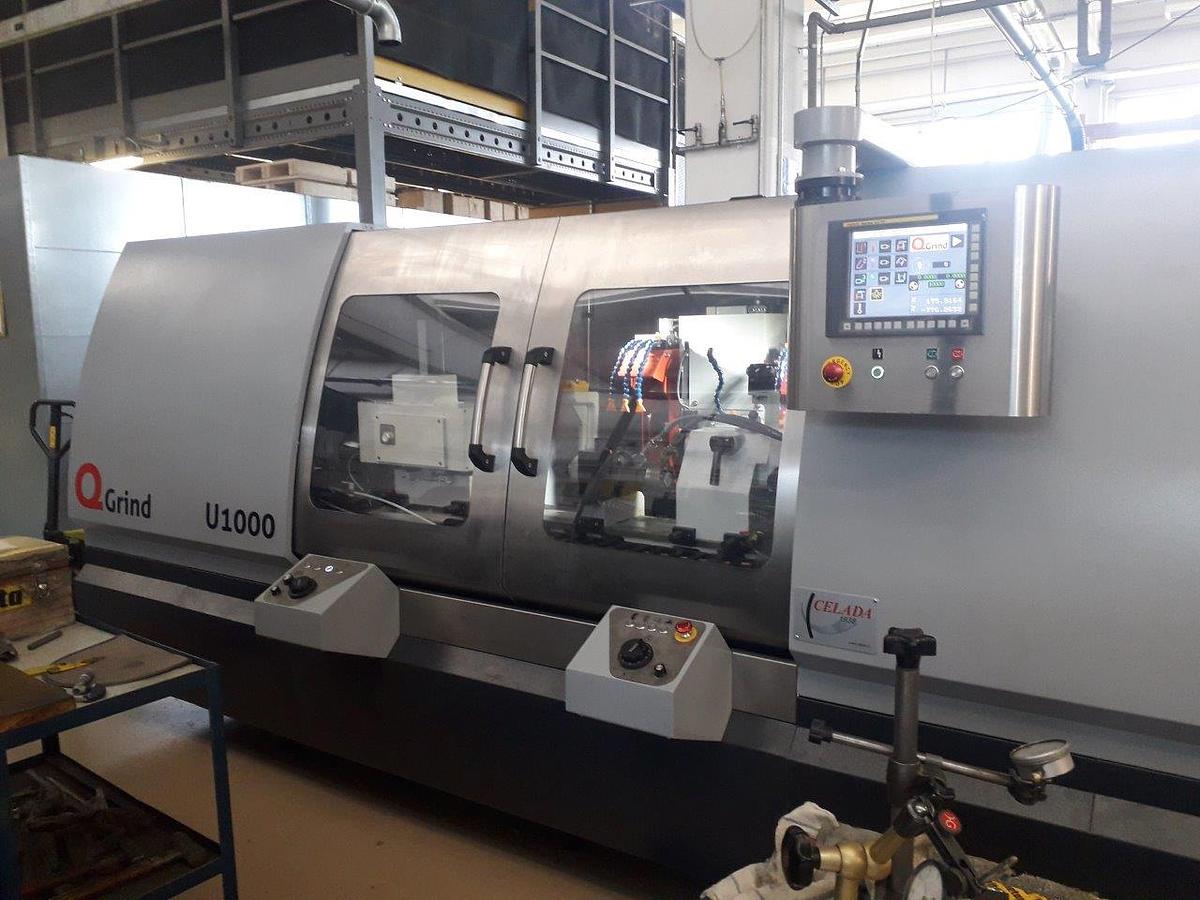

The QGRIND U1000 grinding machine is a used machine designed for precision and versatility operations in the sector industrial. With a maximum swing diameter of 450 mm and a distance between centres of 1000 mm, it is suitable for machining of large workpieces. The grinding length between centers is 800 mm and the machine can handle weights up to 150 kg. The workhead is adjustable between 15° and 90° and offers a variable number of revolutions from 5 to 400 RPM, with a power of 1.5 kW motor. The spindle uses an MT5 taper and the tailstock is also an MT5 type, with a drive hydraulic and a 50 mm stroke. The Z and X axes offer precise movements, with maximum speeds of 10 m/min and 6 m/min and a minimum increment of 0.001 mm. This grinding machine is equipped with a powerful 4.5 kW grinding wheel motor, with peripheral speed of the grinding wheel ranging from 35 to 45 m/s. The control is managed by a FANUC 0ì-TF system with a 15'' touch screen monitor. The overall dimensions of the The machine is 4400 x 2200 x 1900 mm and weighs 6500 kg. It is a reliable solution for those looking for high performance and precision.
