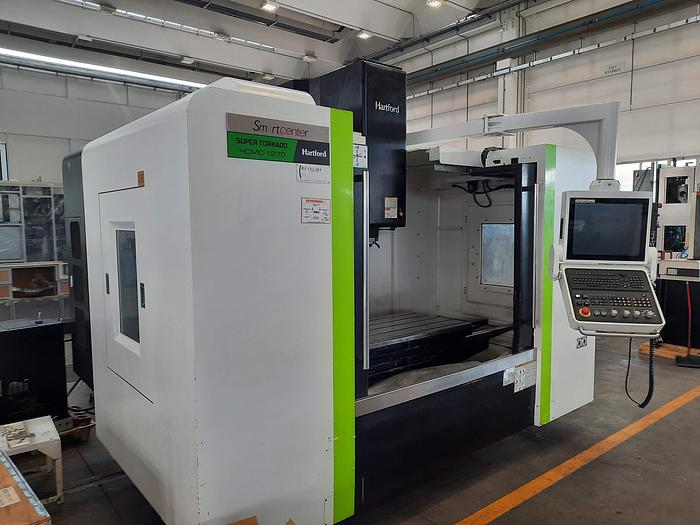

HARTFORD HCMC 1270 USED MACHINING CENTER

Sold

HARTFORD HCMC 1270 USED MACHINING CENTER

Location:Cologno Monzese, Italy

Description

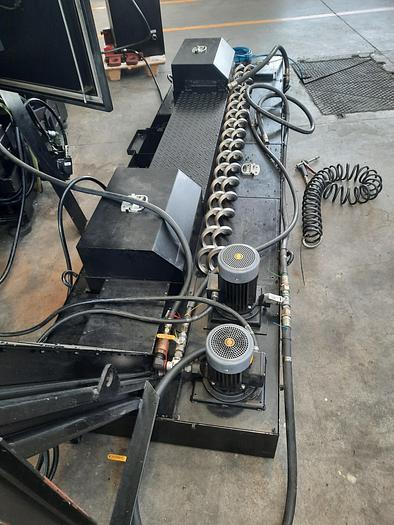

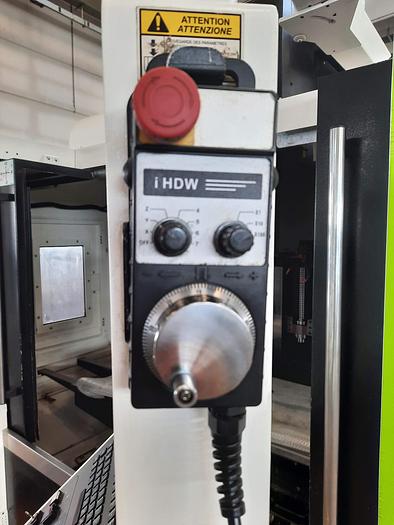

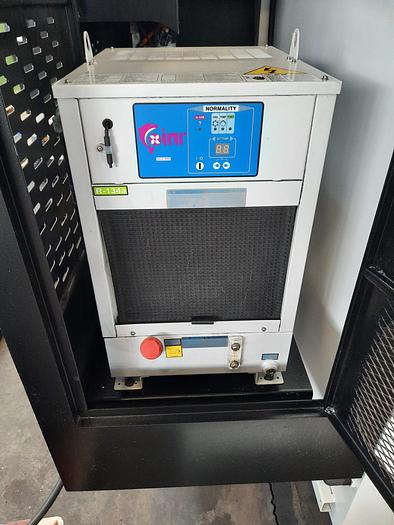

The Hartford HCMC 1270 machining center offers an efficient solution for milling operations. With a surface with a working surface of 1370 x 650 mm and a table load capacity of 1200 kg, this model is suitable for a wide range of applications. The X, Y and Z axes travels are 1270 mm, 650 mm and 630 mm respectively, allowing flexibility and precision. during machining. The spindle can reach up to 8,000 rpm, supported by a 15 kW motor at belt drive, ensuring excellent production performance. The machining centre features include a roller shutter chip conveyor, remote electronic handwheel, guns of washing and blowing, as well as double illumination lamp. It also has an OTS Tool Presetting probe and an OMP40-2 workpiece inspection probe to ensure precise machining. The through-spindle coolant system at 20 Bar and the spindle cooling oil conditioner help maintain operating temperatures optimal. HARTROL PLUS software, including HARTCAM and DXF file converter, enables advanced on-board programming machine via a 19" touch screen video. The tool magazine with capacity for 30 tools and a maximum weight of 7 kg tool makes this work center versatile and suitable for complex production needs.

Specifications

ManufacturerHARTFORD
ModelHCMC 1270
Year2018
ConditionRefurbished
Stock Number47
GOVERNMENT UNITHartrol plus2
SoftwareHartrol

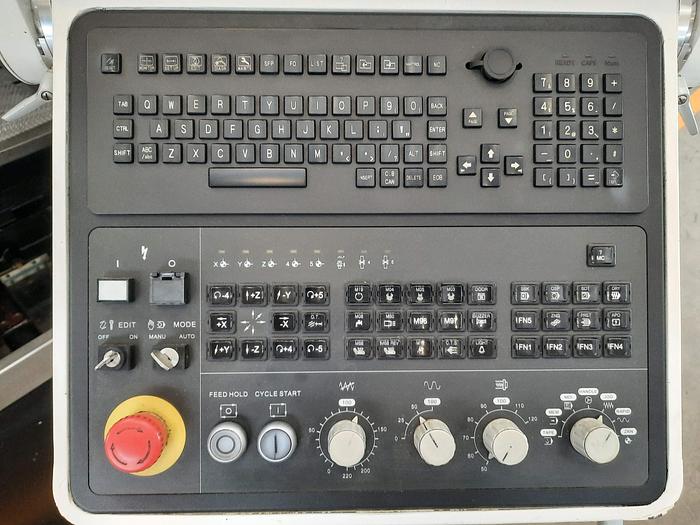

Video19” touch screen

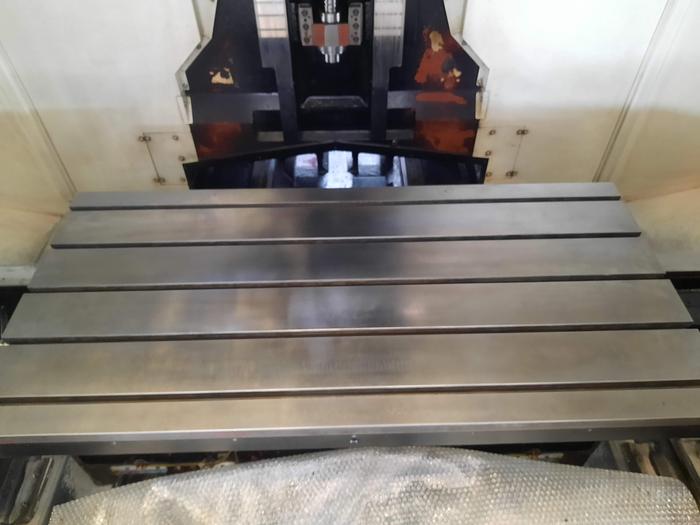

Work table surface1370 x 650 mm
Table service1200 Kg
X axis travel1270 mm
Y axis travel650 mm
Z axis travel630 mm

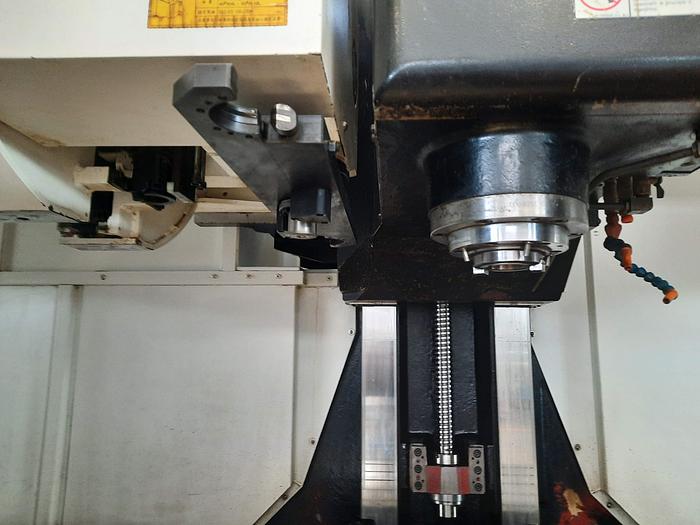

SpindleDIN 40 - 69871/a
No. of laps8,000 Rpm
Spindle Motor Power15 Kw
TransmissionBelt
Tool warehouse30 tools
Maximum UT sizeDiam 75 x Lh. 300 mm
Maximum weight UT7 Kg
